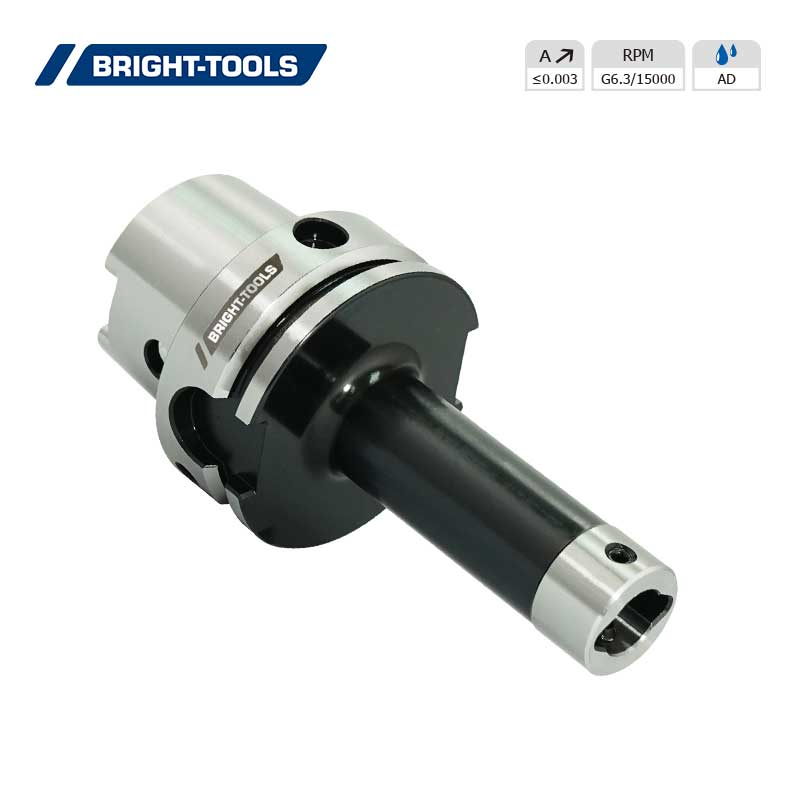

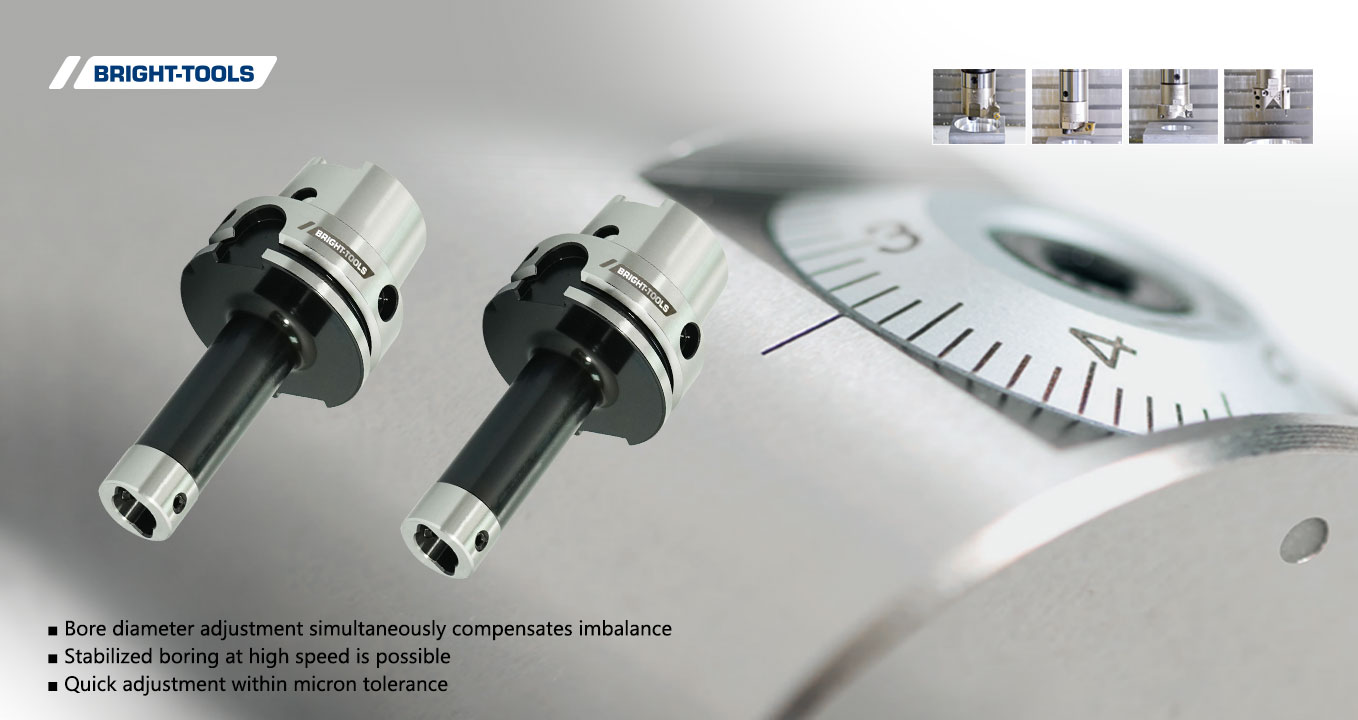

DIN 69893 HSK-A 지루한 도구 홀드
DIN 69871 HSK-A 보링 도구 홀더, 테이퍼 정확도와 동심도에 대한 업계 표준 초과
하나의 오프셋 축 테이퍼 잠금 나사는 강성을 극대화하고 빠른 공구 변경을 허용합니다.
확장 기능을 사용하여 지루한 깊이 증가
크기 | CK No. | D | D | L |
HSK40A-CK1-75 | CK1 | 19 | 11 | 75 |
HSK40A-CK2-85 | CK2 | 24 | 14 | 85 |
HSK40A-CK3-80 | CK3 | 31 | 18 | 80 |
HSK40A-CK4-75 | CK4 | 39 | 22 | 75 |
HSK50A-CK1-75 | CK1 | 19 | 11 | 75 |
HSK50A-CK2-85 | CK2 | 24 | 14 | 85 |
HSK50A-CK3-80 | CK3 | 31 | 18 | 80 |
HSK50A-CK4-75 | CK4 | 39 | 22 | 75 |
HSK50A-CK5-85 | CK5 | 50 | 28 | 85 |
HSK63A-CK1-70 | CK1 | 19 | 11 | 70 |
HSK63A-CK1-100T | CK1 | 19 | 11 | 100 |
HSK63A-CK2-75 | CK2 | 24 | 14 | 75 |
HSK63A-CK2-100 | CK2 | 24 | 14 | 100 |
HSK63A-CK2-130T | CK2 | 24 | 14 | 130 |
HSK63A-CK3-80 | CK3 | 31 | 18 | 80 |
HSK63A-CK3-100 | CK3 | 31 | 18 | 100 |
CK3 | 31 | 18 | 135 | |
HSK63A-CK3-165T | CK3 | 31 | 18 | 165 |
HSK63A-CK4-70 | CK4 | 39 | 22 | 70 |
HSK63A-CK4-100 | CK4 | 39 | 22 | 100 |
HSK63A-CK4-150T | CK4 | 39 | 22 | 150 |
HSK63A-CK4-170T | CK4 | 39 | 22 | 170 |
HSK63A-CK5-80 | CK5 | 50 | 28 | 80 |
HSK63A-CK5-100 | CK5 | 50 | 28 | 100 |
HSK63A-CK5-150 | CK5 | 50 | 28 | 150 |
HSK63A-CK5-180 | CK5 | 50 | 28 | 180 |
HSK63A-CK6-100 | CK6 | 64 | 36 | 100 |
HSK63A-CK6-150 | CK6 | 64 | 36 | 150 |
HSK63A-CK6-180 | CK6 | 64 | 36 | 180 |
HSK100A-CK1-115 | CK1 | 19 | 11 | 115 |
HSK100A-CK1-145T | CK1 | 19 | 11 | 145 |
HSK100A-CK2-105 | CK2 | 24 | 14 | 105 |
HSK100A-CK2-135 | CK2 | 24 | 14 | 135 |
HSK100A-CK2-165 | CK2 | 24 | 14 | 165 |
HSK100A-CK3-110 | CK3 | 31 | 18 | 110 |
HSK100A-CK3-140T | 31 | 18 | 140 | |
HSK100A-CK3-170T | CK3 | 31 | 18 | 170 |
HSK100A-CK4-100 | CK4 | 39 | 22 | 100 |
HSK100A-CK4-160T | CK4 | 39 | 22 | 160 |
HSK100A-CK4-205T | CK4 | 39 | 22 | 205 |
HSK100A-CK5-90 | CK5 | 50 | 28 | 90 |
HSK100A-CK5-165 | CK5 | 50 | 28 | 165 |
HSK100A-CK5-210T | CK5 | 50 | 28 | 210 |
HSK100A-CK5-270T | CK5 | 50 | 28 | 270 |
HSK100A-CK6-85 | CK6 | 64 | 36 | 85 |
HSK100A-CK6-155 | CK6 | 64 | 36 | 155 |
HSK100A-CK6-215 | CK6 | 64 | 36 | 215 |
HSK100A-CK6-250 | CK6 | 64 | 36 | 250 |
HSK100A-CK6-300T | CK6 | 64 | 36 | 300 |
HSK100A-CK7-125 | CK7 | 90 | 46 | 125 |
HSK100A-CK7-200 | CK7 | 90 | 46 | 200 |
HSK100A-CK7-275 | CK7 | 90 | 46 | 275 |
