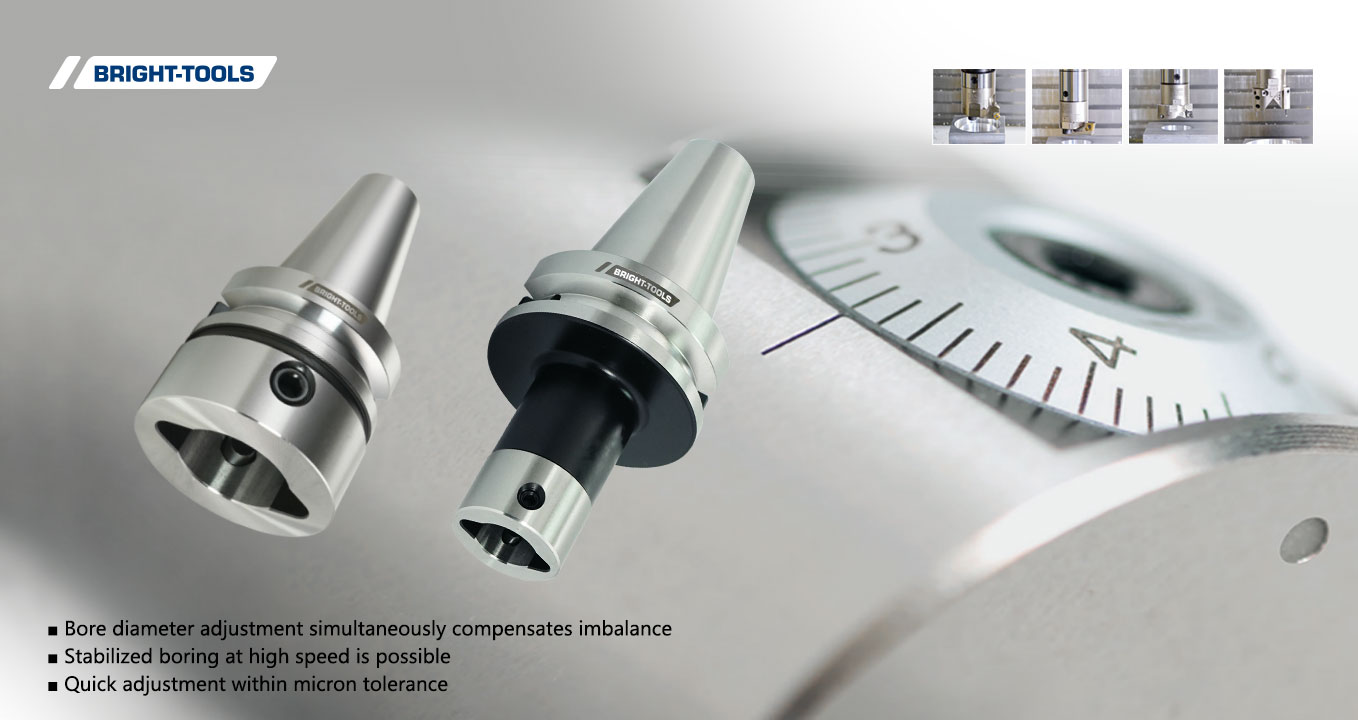

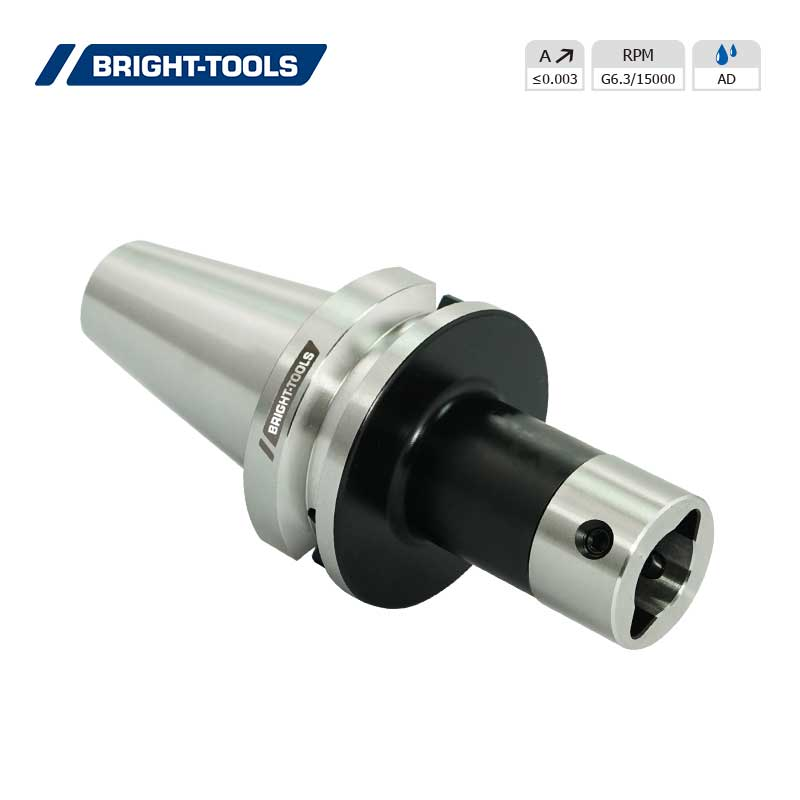

JIS B 6339 보링 도구 홀더
JIS B Boring Tool Holders, 테이퍼 정확도와 동심도에 대한 업계 표준 초과
하나의 오프셋 축 테이퍼 잠금 나사는 강성을 극대화하고 빠른 공구 변경을 허용합니다.
확장 기능을 사용하여 지루한 깊이 증가

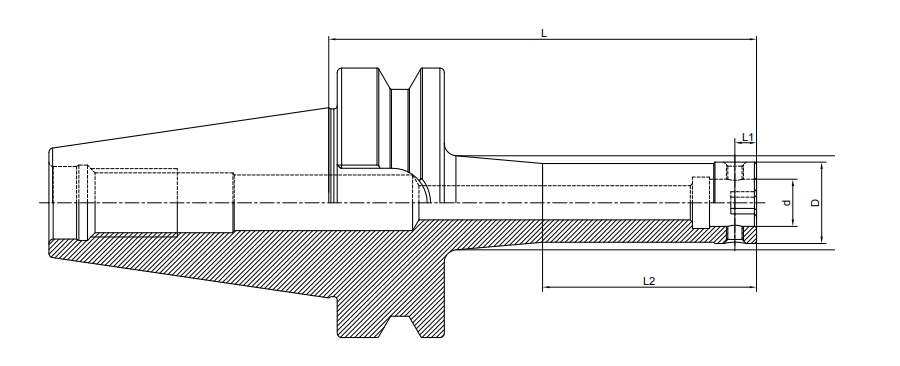

크기 | CK No. | D | D | L |
BT30-CK1-55 | CK1 | 19 | 11 | 55 |
BT30-CK1-70 | CK1 | 19 | 11 | 70 |
BT30-CK2-80 | CK2 | 24 | 14 | 80 |
BT30-CK3-80 | CK3 | 31 | 18 | 80 |
BT30-CK4-70 | CK4 | 39 | 22 | 70 |
BT30-CK5-70 | CK5 | 50 | 28 | 70 |
BT30-CK6-60 | CK6 | 64 | 36 | 60 |
BT40-CK1-70 | CK1 | 19 | 11 | 70 |
BT40-CK1-100T | CK1 | 19 | 11 | 100 |
BT40-CK1-130T | CK1 | 19 | 11 | 130 |
BT40-CK2-75 | CK2 | 24 | 14 | 75 |
BT40-CK2-100 | CK2 | 24 | 14 | 100 |
BT40-CK2-130T | CK2 | 24 | 14 | 130 |
BT40-CK2-160T | 24 | 14 | 160 | |
BT40-CK3-80 | CK3 | 31 | 18 | 80 |
BT40-CK3-100 | CK3 | 31 | 18 | 100 |
BT40-CK3-135T | CK3 | 31 | 18 | 135 |
BT40-CK3-165T | CK3 | <Td class = "et8" x:num = "31">3118 | 165 | |
BT40-CK4-70 | CK4 | 39 | 22 | 70 |
BT40-CK4-100 | CK4 | 39 | 22 | 100 |
BT40-CK4-150T | CK4 | 39 | 22 | 150 |
BT40-CK4-170T | CK4 | 39 | 22 | 170 |
BT40-CK5-80 | CK5 | 50 | 28 | 80 |
BT40-CK5-150 | CK5 | 50 | 28 | 150 |
BT40-CK5-180 | CK5 | 50 | 28 | 180 |
BT40-CK6-100 | CK6 | 64 | 36 | 100 |
BT40-CK6-150 | CK6 | 64 | 36 | 150 |
BT40-CK6-180 | CK6 | 64 | 36 | 180 |
BT50-CK1-80 | CK1 | 19 | 11 | 80 |
BT50-CK1-115T | CK1 | 19 | 11 | 115 |
BT50-CK1-145T | CK1 | 19 | 11 | 145 |
BT50-CK2-80 | CK2 | 24 | 14 | 80 |
BT50-CK2-105 | CK2 | 24 | 14 | 105 |
BT50-CK2-135T | CK2 | 24 | 14 | 135 |
BT50-CK2-165T | CK2 | 24 | 14 | 165 |
BT50-CK3-85 | CK3 | 31 | 18 | 85 |
BT50-CK3-110 | CK3 | 31 | 18 | 110 |
CK3 | 31 | 18 | 140 | |
BT50-CK3-170T | CK3 | 31 | 18 | 170 |
BT50-CK4-100 | CK4 | 39 | 22 | 100 |
BT50-CK4-160T | CK4 | 39 | 22 | 160 |
BT50-CK4-205T | CK4 | 39 | 22 | 205 |
BT50-CK5-90 | CK5 | 50 | 28 | 90 |
BT50-CK5-165 | CK5 | 50 | 28 | 165 |
BT50-CK5-210T | CK5 | 50 | 28 | 210 |
BT50-CK5-270T | CK5 | 50 | 28 | 270 |
BT50-CK6-85 | CK6 | 64 | 36 | 85 |
BT50-CK6-155 | CK6 | 64 | 36 | 155 |
BT50-CK6-215 | CK6 | 64 | 36 | 215 |
BT50-CK6-250 | CK6 | 64 | 36 | 250 |
BT50-CK6-300T | CK6 | 64 | 36 | 300 |
BT50-CK6-350T | CK6 | 64 | 36 | 350 |
BT50-CK7-85 | CK7 | 90 | 46 | 85 |
BT50-CK7-100 | CK7 | 90 | 46 | 100 |
BT50-CK7-150 | CK7 | 90 | 46 | 150 |
BT50-CK7-250 | CK7 | 90 | 46 | 250 |
BT50-CK7-300 | CK7 | 90 | 46 | 300 |
BT50-CK7-350 | 90 | 46 | 350 |
